Arabic Gum Powder Leaf Tea Crushing Machine

  • Support Customization: Yes
  • Brand: Gelgoog
  • Warranty Time:12 Months
  • Country Of Origin:China
  • Payment: T/T, L/C, Trade Assurance, Western Union
Features

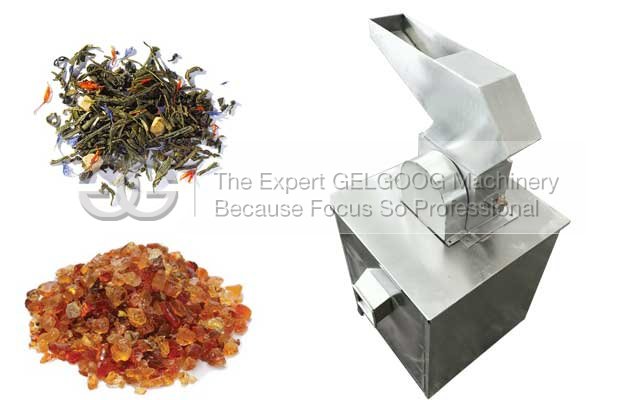

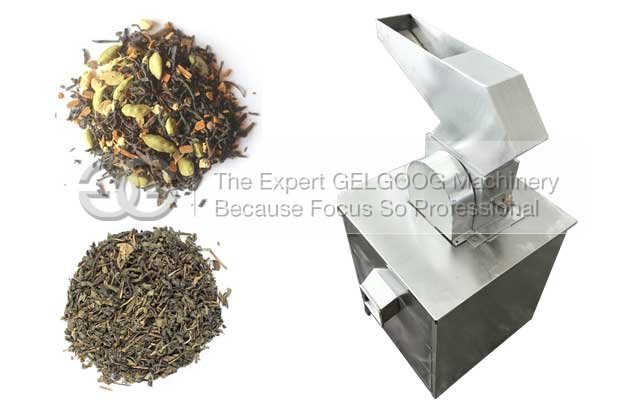

Main use application of powder crushing machine:automatic arabic gum pwder machine leaf tea crushing machine
This machine is suitable for pharmaceutical, chemical, food and other industries. It is a matching equipment for the previous process of micro comminution. It is not restricted by viscosity, hardness, softness and fiber, and can play a good role in crushing any material.

Working principle of the powder crushing machine:

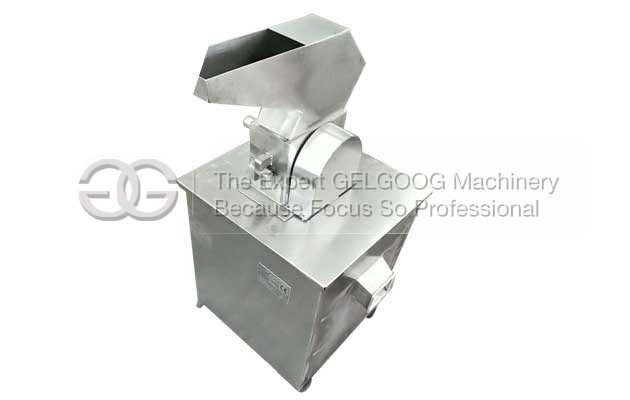

The machine is a horizontal comminution structure, and the material is entered into the crushing chamber by hopper, and it is smashed through the impact and shear of rotary knife and fixed knife, and the material flows to the outlet automatically after rotating centrifugal force.The whole machine is made of stainless steel, with simple structure, easy cleaning and low noise. It is the most ideal equipment for coarse crushing at present.



Technical Data

Model

GG-100

GG-300

GG-300

GG-400

GG-500

GG-600

Capacity

15-100KG/H

30-300KG/H

50-500KG/H

100-800KG/H

150-1000KG/H

200-1500KG/H

Spindle Speed

500R/MIN

500R/MIN

500R/MIN

500R/MIN

500R/MIN

500R/MIN

Feed Size

≤50mm

≤50mm

≤100mm

≤150mm

≤200mm

≤250mm

Output Size

0.5-20mm

0.5-20mm

0.5-20mm

0.5-20mm

0.5-20mm

0.5-20mm

Power

2.2KW

3KW

4KW

5.5KW

7.5KW

11KW

Dimensions

550*380*1000

MM

600*400*1000

MM

700*500*1100

MM

800*780*1300

MM

850*840*1450

MM

920*900*1600

MM

Weight

170KG

220KG

300KG

380KG

500KG

660KG

FAQ
