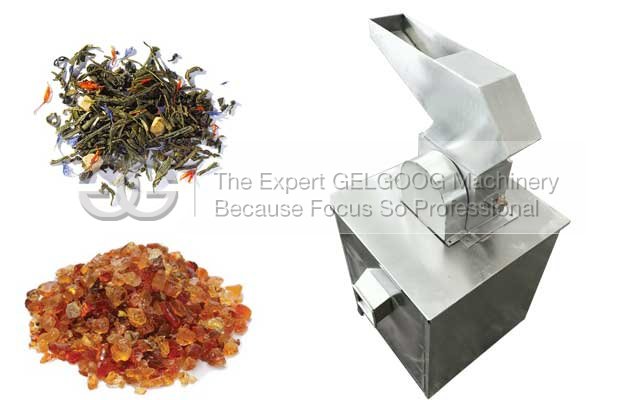

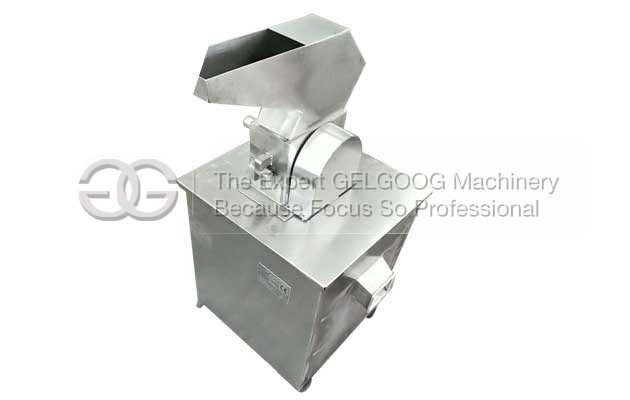

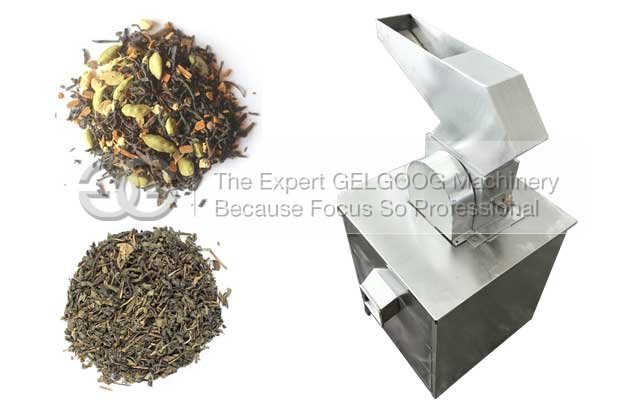

Arabic Gum Powder Leaf Tea Crushing Machine

Features

Main use application of powder crushing machine: automatic arabic gum pwder machine leaf tea crushing machine

This machine is suitable for pharmaceutical, chemical, food and other industries. It is a matching equipment for the previous process of micro comminution. It is not restricted by viscosity, hardness, softness and fiber, and can play a good role in crushing any material.

Working principle of the powder crushing machine:
The machine is a horizontal comminution structure, and the material is entered into the crushing chamber by hopper, and it is smashed through the impact and shear of rotary knife and fixed knife, and the material flows to the outlet automatically after rotating centrifugal force.The whole machine is made of stainless steel, with simple structure, easy cleaning and low noise. It is the most ideal equipment for coarse crushing at present.

Technical Data

Model	GG-100	GG-300	GG-300	GG-400	GG-500	GG-600
Capacity	15-100KG/H	30-300KG/H	50-500KG/H	100-800KG/H	150-1000KG/H	200-1500KG/H
Spindle Speed	500R/MIN	500R/MIN	500R/MIN	500R/MIN	500R/MIN	500R/MIN
Feed Size	≤50mm	≤50mm	≤100mm	≤150mm	≤200mm	≤250mm
Output Size	0.5-20mm	0.5-20mm	0.5-20mm	0.5-20mm	0.5-20mm	0.5-20mm
Power	2.2KW	3KW	4KW	5.5KW	7.5KW	11KW
Dimensions	5503801000 MM	6004001000 MM	7005001100 MM	8007801300 MM	8508401450 MM	9209001600 MM
Weight	170KG	220KG	300KG	380KG	500KG	660KG
